Queueing Azure DevOps Pipelines from Logic Apps

Queueing pipeline execution in Azure DevOps is fully possible in several ways. The reason to do it is to orchestrate running a couple of pipelines to automate manual steps in a larger context. In this post I focus on doing it from Logic Apps Consumption using the Azure DevOps connector. Just starting a pipeline with no parameters is straight forward. Add the Queue a new build action, create the connection, fill in the required information and you’re ready to go.

Azure DevOps Queue a new build action in Logic Apps

If your pipeline has some parameters that you need to fill if you run interactively things get a bit more complicated and you need to understand how data flows in your pipeline. First of all your parameters need to have a default value, without defaults your pipeline fails.

Example of parameters when you run the pipeline interactively.

From your Logic App you can send a JSON dictionary with the values you want to use in the pipeline. With the example in the image, you will have available in your pipeline the values using the syntax $(keyName) three parameters.

Input JSON from the Logic App.

Nice but to get things working nicely being able to start your pipeline interactively and from your Logic App we need to bind the incoming values to the parameters you have in the pipeline. You can do this by setting the default value for the parameters.

Parameters section in the pipeline definition.

In the rest of your pipeline always use the normal syntax ${{parameters.%name%}} that way the pipeline will use the right values regardless of if you start from your Logic App or interactively. The picture below shows how data flows from your Logic App into the parameters and then used in the tasks.

Show data flow from the JSON into the parameters and the used in tasks.

Hope this give you a better understanding how you can start your pipelines with arguments and how the data can flow.

Additional reading:

Azure DevOps – Connectors | Microsoft Docs

Use runtime and type-safe parameters – Azure Pipelines | Microsoft Docs

Some more on using the connector Automating Azure DevOps with Logic Apps – Simple Talk (red-gate.com)

Test your Liquid transformations without deployment

I work on a project doing integration with Azure Integration Services and Azure Functions. As always in integration projects doing mapping is a key area. I’m used from BizTalk development to be able to test my maps without doing deployment which makes it easy to develop in an iterative manner. While working with Logic Apps I started using Liquid transformations and did not find any tool to help with that. Logic Apps transforms with the DotLiquid library (C# Naming conventions). With that information in hand I created a program to test. I separated it in two a library, LiquidTransformationLib.dll, and a program, LiquidTransform.exe. The library makes it easy to use in automated tests.

Parameters for LiquidTransform.exe:

Parameter Description Required
-t | –template Full path to the Liquid template to use. Yes
-c | –content Full path to Content file. Yes
-d | –destination Full path to destination file. Will overwrite an existing file Yes
-r | –rootelement Root element to add before render. For Logic Apps you will need to use content No
-u | –rubynaming Use RubyNamingConvention, Logic Apps use C# naming conventions and will be the default. No
-? | -h | –help Show help information No

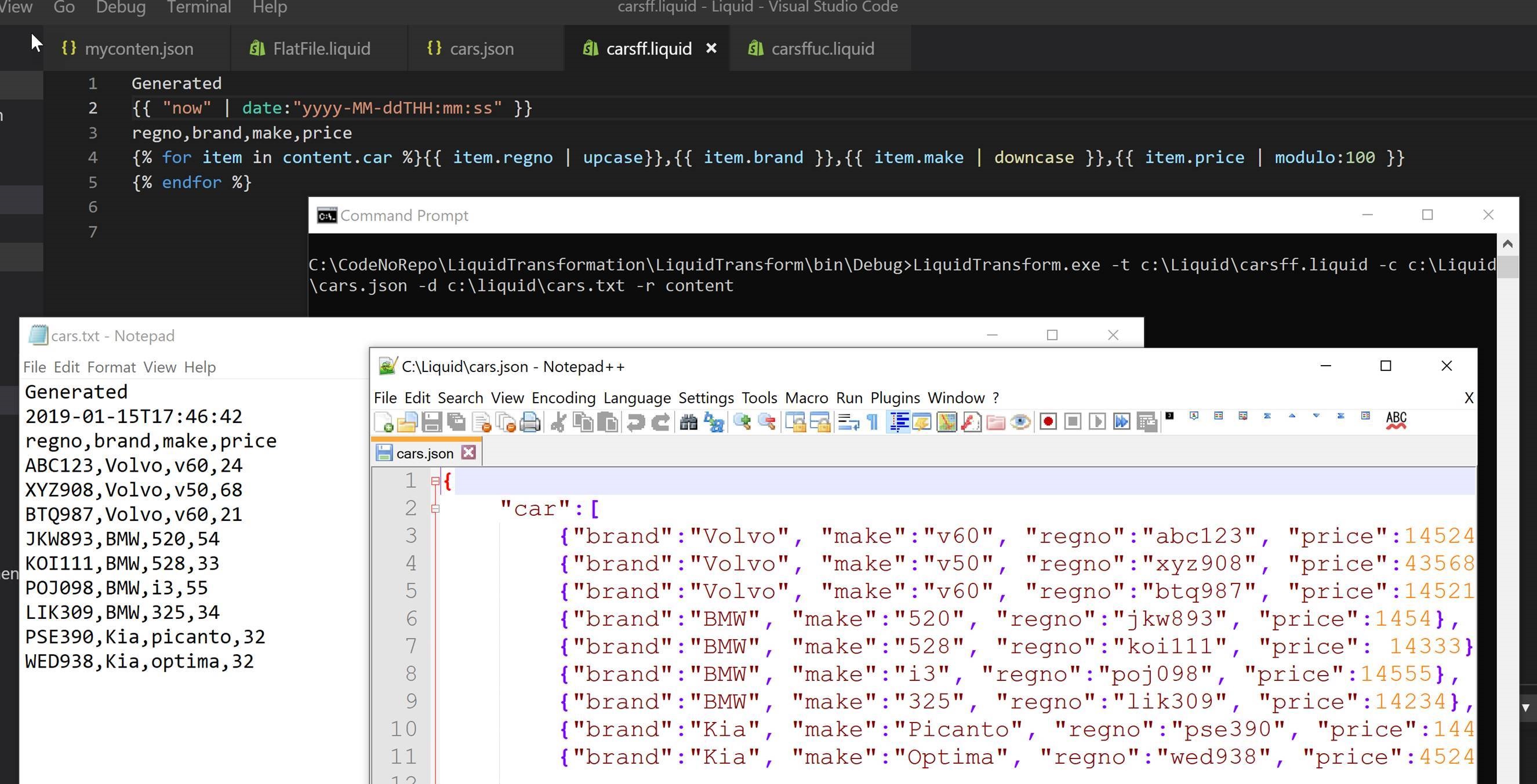

liquidtransformYou can download source code from the GiHub repo https://github.com/skastberg/LiquidTransformation

If just want the binaries https://github.com/skastberg/LiquidTransformation/tree/master/Binaries

More information about Liquid Transformation in Logic Apps:

https://docs.microsoft.com/en-us/azure/logic-apps/logic-apps-enterprise-integration-liquid-transform

https://blogs.msdn.microsoft.com/logicapps/2017/12/06/introducing-the-liquid-connector-transform-json-to-json-json-to-text-xml-to-json-and-xml-to-text/
